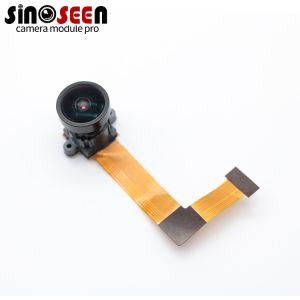

High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635
Customizable 1MP WXGA High Dynamic Range HD MIPI Camera Module With Omnivision OV10635
MIPI Camera Module
This is a 1MP MIPI camera module with Omnivision sensor OV10635,OV10653 is a 1/2.7" CMOS WXGA (1280x800) high dynamic range (HDR) high definition (HD) image sensor.It support for image sizes:WXGA (1280x800),HD 720p (1280x720),WVGA (752x480),VGA (640x480),600x400,CIF (352x288),QVGA (320x240).
It's high sensitivity and has HDR fuction,also its operating temperature range is -40 to 105°C.
Specification
| Module No | SNS-1MP-OV10635-M1.0 |
| Pixel Size | 4.2μm x 4.2μm |
| Effective Pixels | 1280H×800H |
| Video output | Raw Bayer10bit/8bit |
| Active Array Size Video Rate | 30FPS |
| Image Sensor | 1/2.7" |
| Sensor Type | Omnivision OV10635 |
| Lens view | FOV90°(optional),F/N(optional) |
| TV Distortion | <1% |
| AEC | Support |
| AEB | Support |
| AGC | Support |
| Operating voltage | AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
| Operating temperature | -40～105℃ |
| Storage temperature | 0～70℃ |
| Dimensions | Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
